Overview

The Spacecraft Dialog houses information that is shared between subsystems. This dialog is where body frame vectors, external surfaces, and generic components are defined. The dialog is also where you upload the CAD model of your satellite.

Spacecraft Dialog

Opening the dialog

The Spacecraft Dialog can be opened via the Edit Spacecraft button in the Navigation Bar or via the inline accents above applicable user interface input fields.

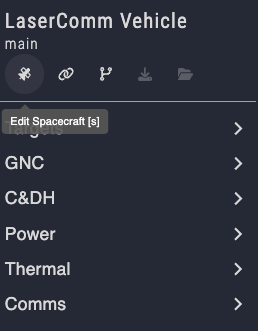

Opening the Spacecraft Edit Dialog
